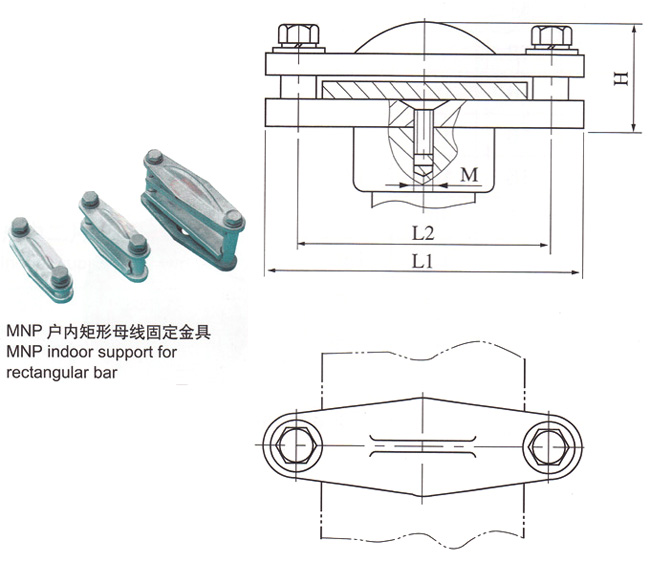

| 型号Catalog No. |
母线宽度 Bus width(mm) |
主要尺寸Dimensions(mm) |
重量Weight(kg) |
|||
| M | H | L1 | L2 | |||
| MNP-101 |
63 |
10 | 38 | 113 | 83 |
0.4 |
| MNP-102 |
80 |
10 | 42 | 130 | 100 |
0.5 |
| MNP-103 |
100 |
10 | 46 | 150 | 120 |
0.6 |
| MNP-104 |
125 |
10 | 48 | 175 | 145 |
0.6 |
| MNP-105 |
63 |
16 | 38 | 113 | 83 |
0.4 |
| MNP-106 |
80 |
16 | 42 | 130 | 100 |
0.5 |
| MNP-107 |
100 |
16 | 46 | 150 | 120 |
0.6 |
| MNP-108 |
125 |
16 | 48 | 175 | 145 | 0.6 |

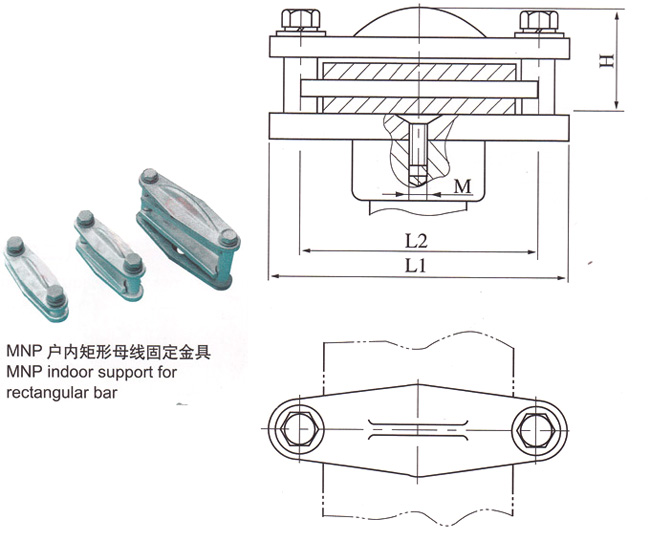

2）户内二片矩形母线固定金具（平放式）
| 型号Catalog No. |
母线宽度 Bus width(mm) |
主要尺寸Dimensions(mm) |
重量Weight(kg) |
|||
| M | H | L1 | L2 | |||
| MNP-201 |
63 |
10 | 58 | 113 | 83 |
0.7 |
| MNP-202 |
80 |
10 | 62 | 130 | 100 |
0.8 |
| MNP-203 |
100 |
10 | 66 | 150 | 120 |
1.0 |
| MNP-204 |
125 |
10 | 68 | 175 | 145 |
1.0 |
| MNP-205 |
63 |
16 | 58 | 113 | 83 |
0.7 |
| MNP-206 |
80 |
16 | 62 | 130 | 100 |
0.8 |
| MNP-207 |
100 |
16 | 66 | 150 | 120 |
1.0 |
| MNP-208 |
125 |
16 | 68 | 175 | 145 |
1.0 |

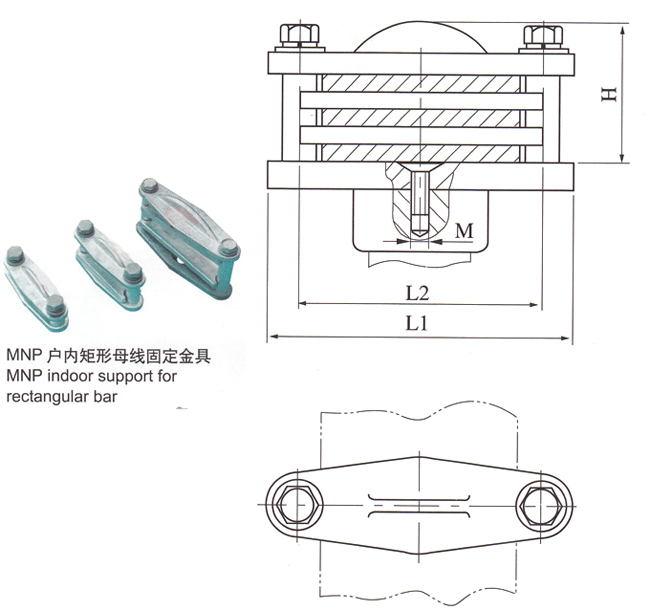

3）户内三片矩形母线固定金具（平放式）
| 型号Catalog No. |
母线宽度 Bus width(mm) |
主要尺寸Dimensions(mm) |
重量Weight(kg) |
|||
| M | H | L1 | L2 | |||
| MNP-301 |
63 |
10 | 78 | 113 | 83 |
0.9 |
| MNP-302 |
80 |
10 | 82 | 130 | 100 |
0.9 |
| MNP-303 |
100 |
10 | 86 | 150 | 120 |
1.2 |
| MNP-304 |
125 |
10 | 88 | 175 | 145 |
1.3 |
| MNP-305 |
63 |
16 | 78 | 113 | 83 |
0.8 |
| MNP-306 |
80 |
16 | 82 | 130 | 100 |
0.9 |
| MNP-307 |
100 |
16 | 86 | 150 | 120 |
1.1 |
| MNP-308 |
125 |
16 | 88 | 175 | 145 |
1.2 |

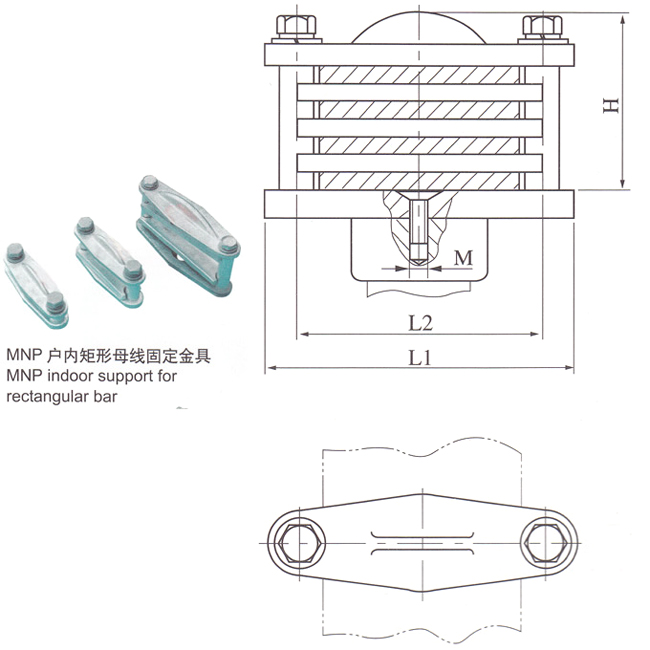

4）户内四片矩形母线固定金具（平放式）
| 型号Catalog No. |
母线宽度 Bus width(mm) |
主要尺寸Dimensions(mm) |
重量Weight(kg) |
|||
| M | H | L1 | L2 | |||
| MNP-401 |
63 |
16 | 98 | 113 | 83 |
1.1 |
| MNP-402 |
80 |
16 | 102 | 130 | 100 |
1.1 |
| MNP-403 |
100 |
16 | 106 | 150 | 120 |
1.4 |
| MNP-404 |
125 |
16 | 108 | 175 | 145 |
1.5 |
| MNP-405 |
63 |
18 | 98 | 113 | 83 |
1.0 |
| MNP-406 |
80 |
18 | 102 | 130 | 100 |
1.1 |
| MNP-407 |
100 |
18 | 106 | 150 | 120 |
1.2 |
| MNP-408 |
125 |
18 | 108 | 175 | 145 |
1.3 |
